Tank Weldable Valves

Description

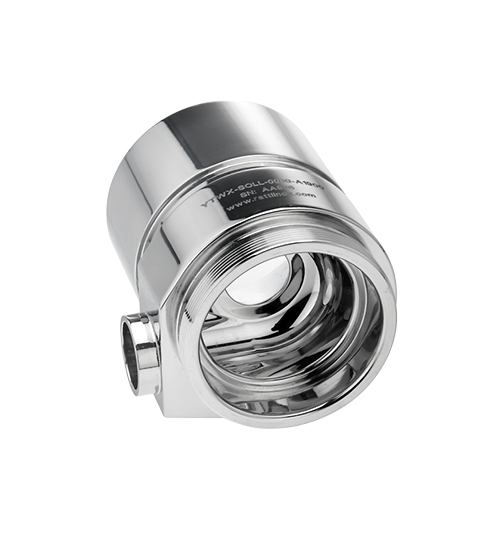

Tank Weldable Valves

Tank Weldable Valves are designed to intercept flow pattern when welded on a vessel wall. The long conical inlet may be modify according to the design of the internal shape of the vessel to reach flush flow design. Body shape and their internal design offer a very reliable component for Aseptic Processing Application. Standard version are short butt weld ends but, on demand, may be delivered for orbital welding or with Tri-Clamp connections. Shut Off and Flow Through valves are available in several configurations to fulfill customer needs on all applications: vertical or horizontal installations, coaxial or tangential outlets as standard, they are designed for a full drain ability and free of unused portions or dead legs.

  • Shut Off 90 Tank Weldable Valve Body
    C 005

    Shut Off 90 Tank Weldable Valve Body

  • Shut Off 90 Tank Weldable Valve Body Tang. Right
    C 010

    Shut Off 90 Tank Weldable Valve Body Tang. Right

  • Shut Off 90 Tank Weldable Valve Body Tang. Left
    C 015

    Shut Off 90 Tank Weldable Valve Body Tang. Left

  • Flow Through 180 Tank Weldable Valve Body
    C 020

    Flow Through 180 Tank Weldable Valve Body

  • Flow Through 180 Tank Weldable Valve Body Tang. Right
    C 025

    Flow Through 180 Tank Weldable Valve Body Tang. Right

  • Flow Through 180 Tank Weldable Valve Body Tang. Left
    C 030

    Flow Through 180 Tank Weldable Valve Body Tang. Left

  • Flow Through 90 Tank Weldable Valve Body
    C 035

    Flow Through 90 Tank Weldable Valve Body
